What components are needed for a single-mode dual-fiber optical module

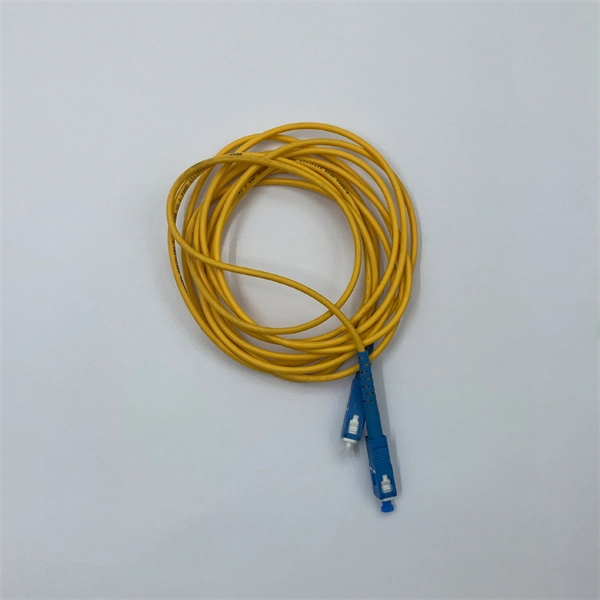

Single-mode dual-fiber optical modules use two fibers for full-duplex communication, typically operating over long distances with laser-based light sources and LC connectors.OverviewSingle-mode dual-fiber modules are designed for long-distance, high-speed data transmission. They use a narrow core fiber (~9 µm) that allows light to travel in a single, straight path, minimizing signal loss and modal dispersion, which is ideal for distances ranging from hundreds of meters to tens of kilometers depending on the module type and wavelength (1310nm or 1550nm) . Dual-fiber modules use two separate fibers: one for transmitting and one for receiving, enabling full-duplex communication .Configuration DetailsFiber Type: OS2 single-mode fiber is standard for dual-fiber modules .Connectors: LC connectors are commonly used for single-mode modules, ensuring precise alignment and low insertion loss .Wavelengths: Standard wavelengths are 1310nm for short-to-medium distances and 1550nm for longer distances. Each fiber in a dual-fiber setup carries a single wavelength in one direction .Transceiver Type: SFP, SFP+, SFP28, and higher-density modules can be used depending on speed requirements (1G–100G). Each transceiver must match the wavelength and fiber type on the opposite end to avoid link failure .Distance Considerations: Single-mode dual-fiber modules are suitable for distances from 500 meters up to 80 km or more, depending on the module class (e.g., LX, EX, ZX) and optical budget .Special ConfigurationsBiDi (Bidirectional) Modules: While standard dual-fiber modules use two fibers, single-fiber BiDi modules can transmit and receive over a single fiber using two different wavelengths (e.g., 1310nm/1550nm). These require complementary transceivers at each end .Compatibility: Single-mode dual-fiber modules cannot be mixed with multi-mode fibers or mismatched wavelengths. Proper matching ensures low bit error rates and reliable communication .Practical Deployment TipsCheck Fiber Type: Ensure the network uses single-mode fiber (OS2) for dual-fiber modules.Match Wavelengths: Both ends of the link must use transceivers with compatible wavelengths.Connector Alignment: Use LC connectors for single-mode modules to minimize insertion loss.Distance Planning: Select module type (LX, EX, ZX) based on required link distance and optical budget.SFP Selection: Use SFP or SFP+ modules certified for your switch or router to ensure proper recognition and performance . By following these configuration guidelines, single-mode dual-fiber optical modules provide high-speed, long-distance, and reliable network connectivity suitable for enterprise, data center, and telecom applications.
