How to install the fiber optic box coupler

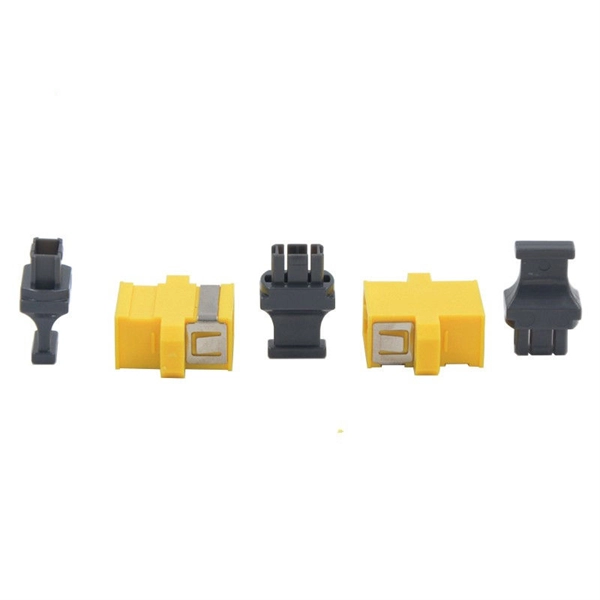

To connect a fiber optic coupler to a terminal box, clean and align the connectors, insert them into the adapter, secure the connection, and test for signal integrity.Step 1: Prepare the Fiber Optic Cables and ConnectorsBefore connecting, ensure that all fiber optic cables and pigtails are clean and free of dust or debris. Use lint-free wipes and fiber optic cleaning solution to clean the end faces of the connectors . Inspect the fibers for any bends, kinks, or damage, as these can cause signal loss .Step 2: Identify the Terminal Box and CouplerTerminal Box: This is where the optical cable is terminated and connected to pigtails. It can accommodate multiple cores, e.g., a 4-core fiber can connect to 4 pigtails .Fiber Optic Coupler (Adapter): Acts as a bridge between the pigtail and the terminal box, aligning the ferrules for proper optical signal transmission .Step 3: Insert the Pigtail into the Terminal BoxSecure the optical cable inside the terminal box.Connect each fiber core to a corresponding pigtail. The pigtail is a short fiber with a connector on one end that will interface with the coupler .Step 4: Connect the CouplerInsert the connectors of the pigtail and the device or another fiber into the fiber optic coupler.Align the ferrules carefully to avoid damaging the fiber.Push the connectors gently but firmly into the adapter. Some adapters may have latches or screws to lock the connectors in place .Step 5: Routing and SecuringRoute the fibers neatly inside the terminal box to prevent bending or stress.Ensure that the coupler is properly seated in the terminal box flange or slot designed for adapters .Step 6: Test the ConnectionPerform a visual inspection to ensure proper alignment.Use a fiber optic power meter or OTDR (Optical Time-Domain Reflectometer) to test for signal loss and verify that the connection is functioning correctly .Additional ConsiderationsTerminal Box vs. Splice Box: Terminal boxes are used to connect optical cables to pigtails and are not waterproof, whereas splice boxes are fully sealed and used to join two optical cables .Connector Types: Ensure the coupler matches the connector type (LC, SC, ST, FC, MPO/MTP) used in your network .Handling: Avoid excessive bending of fibers and always handle connectors by the ferrule or boot to prevent contamination or damage . Following these steps ensures a reliable, low-loss connection between the fiber optic coupler and the terminal box, maintaining optimal network performance.
