Construction Requirements for Low-Voltage Distribution Boxes on Construction Sites

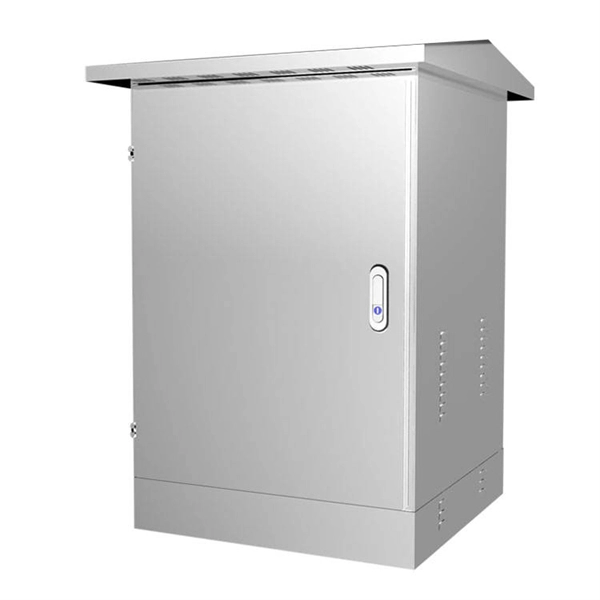

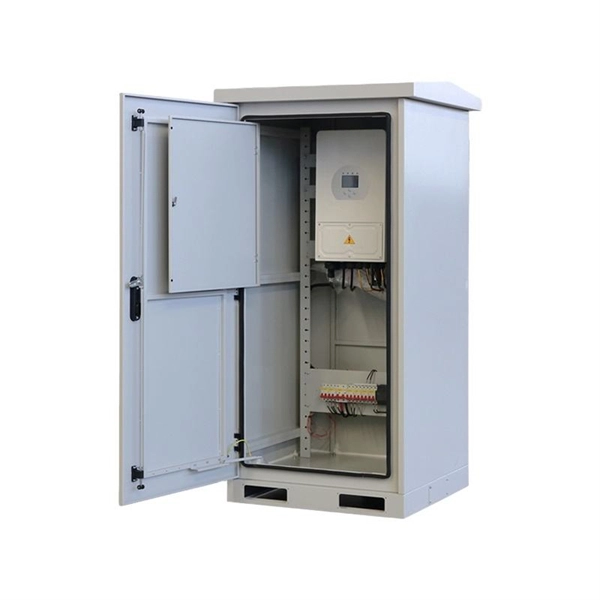

Low-voltage distribution boxes must comply with IEC 61439 and NEC standards, ensuring proper material, protection, grounding, and busbar arrangements for safe and reliable operation.Material and Structural RequirementsLow-voltage distribution boxes are typically fabricated from 2 mm galvanized steel sheets for outdoor applications, with reinforced structures using suitable channels to ensure rigidity and durability . Doors should have hidden hinges and secure locking systems, such as a three-position Godrej lock, with provisions for manual locking to prevent unauthorized access . Roofs are often slightly slanted with overhangs to prevent water ingress, and boxes should meet IP-55 protection rating for dust and water resistance .Standards and ComplianceConstruction must adhere to IEC 61439-1 and IEC 61439-2, which define requirements for low-voltage switchgear and controlgear assemblies, including temperature rise, short-circuit withstand, and verification of busbar strength . Compliance with the National Electrical Code (NEC) ensures minimum safety standards, proper labeling, and safe maintenance access . Type test certificates from approved laboratories may be required to verify protection ratings and performance .Electrical Components and Busbar ArrangementsBusbars: Properly sized and insulated, typically aluminium EC grade, with cross-sections depending on capacity (e.g., 72x50x8 mm for 63/100 KVA, 112x50x15 mm for 160/315 KVA), .Incoming and outgoing droppers: Sized to match busbars and insulated with PVC sleeves, maintaining phase sequence RYB .Short-circuit protection: MCCBs or isolators must be installed according to IEC and IS standards, with arc-chutes to extinguish arcs quickly .Porcelain cutouts: Used for outgoing circuits in higher-capacity boxes to protect equipment .Grounding and EarthingDistribution boxes must include solid earthing points on either side, ensuring proper grounding to protect personnel and equipment from electrical faults . Good grounding practices are essential for safety and compliance with IEC and NEC standards .Safety and MaintenanceClear working space: Ensure safe access for maintenance and inspection .Labeling: Proper hazard and operating procedure labels prevent mistakes .Regular inspection: Periodic checks for overheating, corrosion, or loose connections maintain reliability .PPE requirements: Arc flash hazard analysis determines necessary protective equipment for personnel .Additional ConsiderationsOutdoor boxes should resist rust and environmental exposure, with galvanized or coated surfaces .Internal layout should allow adequate clearance between busbars and the box body to prevent short circuits .Project-specific planning tools, such as BIM or SIMARIS software, can optimize design and installation . By following these specifications, low-voltage distribution boxes can achieve safe, reliable, and code-compliant operation in residential, commercial, or industrial installations.
