How to get fiber optic cables from the low-voltage wiring shaft into the equipment room

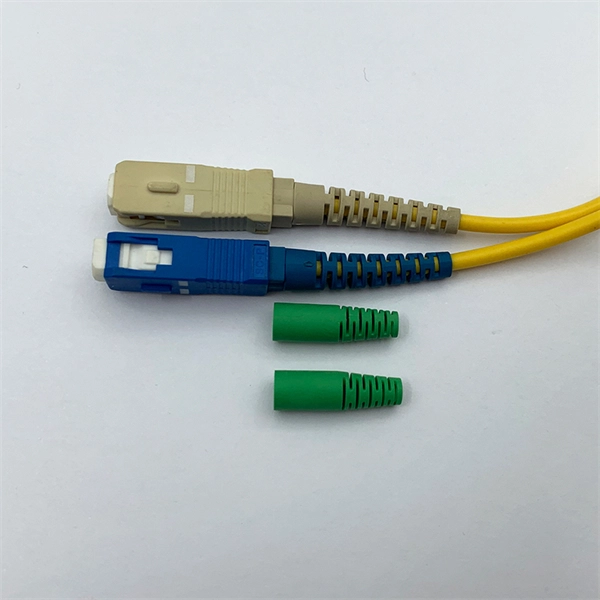

Fiber optic cables should be carefully pulled from low-voltage shafts into equipment rooms using proper conduit, bend radius, and pulling techniques to prevent damage and maintain signal integrity.Planning and PreparationBefore pulling fiber, map the route from the low-voltage shaft to the equipment room, noting all bends, junction boxes, and potential obstacles . Ensure the pathway is clear of high-voltage lines; NEC requires at least 12 inches of separation for parallel runs or a barrier if closer . Confirm the type of fiber (singlemode or multimode) and the cable diameter, as this affects bend radius and conduit sizing .Conduit and Pathway ConsiderationsUse dedicated conduits or innerducts for fiber to protect it from mechanical stress and moisture .Maintain the minimum bend radius, typically 10–15 times the cable diameter, especially at corners and entry points .Avoid sharp turns or kinks; use cable guides or radius control devices at transitions into the equipment room .For long runs, consider pulling from the middle outwards or using a blown fiber technique if microducts are installed .Pulling TechniquesDo not pull on connectors; use a pulling grip designed for pre-terminated fiber .Monitor tension and never exceed the cable's maximum tensile rating. For long runs, use lubricants compatible with the cable jacket to reduce friction .Pull cables in manageable quantities rather than overstuffing conduits to prevent crushing or exceeding bend radius .For runs over 40 meters, use a figure-8 lay on the floor to prevent twisting .Entry into the Equipment RoomTerminate fiber in rack-mounted patch panels or enclosures to maintain organization and protect connectors .Ensure proper slack loops to accommodate future moves or re-termination without stressing the fiber .Maintain cleanliness; connectors should be free of dust or scratches to avoid signal loss .Safety and ComplianceFiber optic cabling is considered low-voltage, but it still requires careful handling to prevent damage .Coordinate with electrical and other low-voltage trades to maintain code-compliant separation and avoid interference .Follow manufacturer specifications for pulling tension, bend radius, and connector handling to ensure long-term reliability . By following these steps—planning the route, using proper conduit, respecting bend radius, employing correct pulling techniques, and terminating in organized enclosures—you can safely and efficiently bring fiber optic cables from a low-voltage shaft into an equipment room while preserving signal integrity and compliance.
