Requirements for spacing between cable trays and pipes

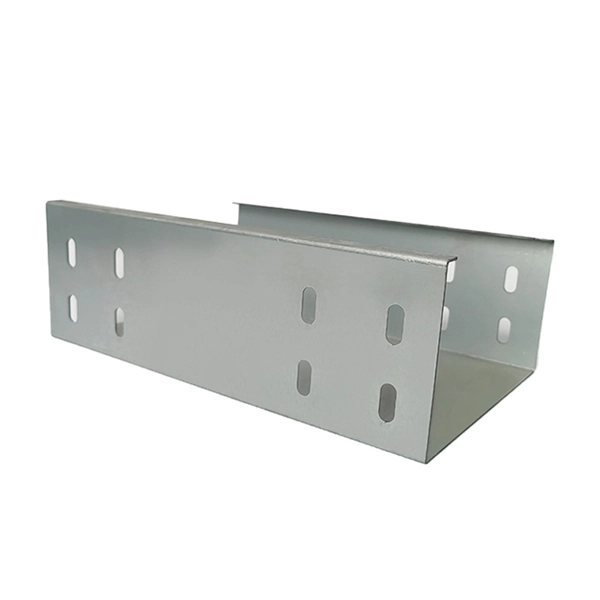

Cable trays must maintain specific safety distances from pipes depending on pipe type, insulation, and environmental conditions, typically ranging from 0.4 to 1 meter.General Spacing GuidelinesProcess Pipes (e.g., compressed air): Cable trays should be installed at least 0.4 meters away when running parallel, and at least 0.3 meters when crossing the pipes .Thermal Pipes:With insulation: maintain a minimum 0.5 meters parallel distance.Without insulation: maintain at least 1 meter parallel distance, with additional heat protection for cables.Avoid placing cable trays above thermal pipes; if unavoidable, ensure a 1-meter gap with proper heat insulation .Corrosive Liquid Pipes: Maintain a minimum 0.5 meters distance for parallel or crossing installations, and apply anti-corrosion measures such as protective coatings .Corrosive Gas Pipes: Avoid placing cable trays above these pipes; if necessary, maintain at least 0.5 meters and use corrosion-resistant materials or protective measures .Additional ConsiderationsLow-Voltage vs Power Cables: Maintain at least 0.5 meters separation; with shielding, this can be reduced to 0.3 meters, though larger distances are recommended .Multiple Cable Trays: When two trays run parallel at the same height, maintain a minimum 0.6 meters distance .Environmental Factors: In humid, high-temperature, or flammable environments, increase spacing as needed and consider fireproof partitions or flame-retardant materials .Crossing Pipes: Ensure cable protection trays or covers extend at least 2 meters at intersections with heat or corrosive pipes, and use stainless steel or protective boards where necessary .Best PracticesConduct a professional evaluation in constrained spaces or complex pipe layouts to ensure adequate safety distances .Use insulation, protective coatings, or corrosion-resistant materials when cables are near heat or corrosive sources.Follow local electrical codes and standards (e.g., BS EN 61537) for installation and safety compliance . Maintaining these spacing requirements ensures cable integrity, safety, and compliance with engineering standards while minimizing risks from heat, corrosion, or electrical interference.
