Specifications of Low-Voltage Distribution Boxes

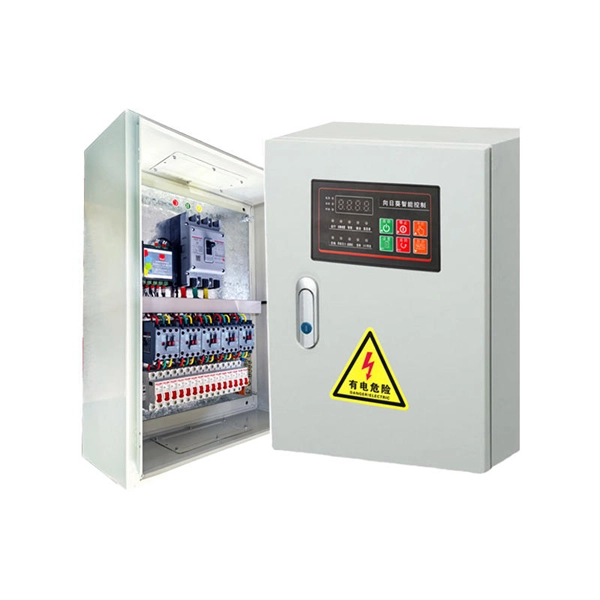

Low voltage distribution boxes are designed to safely distribute electrical power up to 1000V, integrating circuit protection, metering, and modular components for industrial, commercial, and residential applications.Key Technical SpecificationsVoltage and Frequency: Most low voltage distribution boxes operate at AC 50Hz or 60Hz, with rated voltages typically ranging from 380V to 660V, and some systems supporting up to 1000V for industrial applications . Current Ratings: Main Distribution Boards (MDBs) can handle high continuous currents from 1000A up to 6300A, while Sub-Distribution Boards (SDBs) and Final Distribution Boards (FDBs) are rated for lower currents suitable for localized circuits . Protection Features: These boxes integrate Molded Case Circuit Breakers (MCCBs), Air Circuit Breakers (ACBs), fuses, residual current devices (RCDs), and surge protection devices to ensure overload, short-circuit, and fault protection . Construction and Materials: Typically housed in robust steel or fire-resistant enclosures, low voltage distribution boxes provide mechanical durability, thermal dissipation, and safety against electrical hazards. Many models offer IP ratings up to IP55, ensuring protection against dust and water ingress . Standards Compliance: Certified to IEC 61439-1/-2, UL, or CE standards, these boxes meet strict requirements for insulation, short-circuit withstand capacity, and operational safety . Modularity and Layout: Modern distribution boxes are designed for easy maintenance and expansion, with clear labeling, accessible wiring, and modular busbar configurations. This allows for future upgrades without full system shutdowns .Types of Low Voltage Distribution BoxesFixed Switchgear (GGD, GDH, PGL series): Used in substations, power plants, and industrial facilities for stable power distribution .Withdrawable Switchgear (GCK, GCS, MNS series): Suitable for motor control centers, lighting systems, and high-consumption areas, offering compact and stable performance .Compact Distribution Boxes (XM series): Ideal for secondary power distribution in commercial, industrial, and residential settings, providing safe and reliable operation with easy access for maintenance .Installation and Environmental ConsiderationsIndoor vs Outdoor: Choose weatherproof enclosures for outdoor installations and lighter materials for indoor use .Load Planning: Calculate total power demand and peak loads to prevent overloads and ensure safe operation .Safety and Expansion: Ensure the box has adequate space for future expansion and includes safety features like circuit breakers, surge protectors, and fire-resistant materials .SummaryLow voltage distribution boxes are essential for safe, reliable, and efficient power distribution. They combine high current capacity, robust protection, modular design, and compliance with international standards to meet the needs of industrial, commercial, and residential electrical systems . Proper selection based on voltage, current, environmental conditions, and future expansion ensures operational safety and long-term reliability.
