Opwg optical fiber splicing site

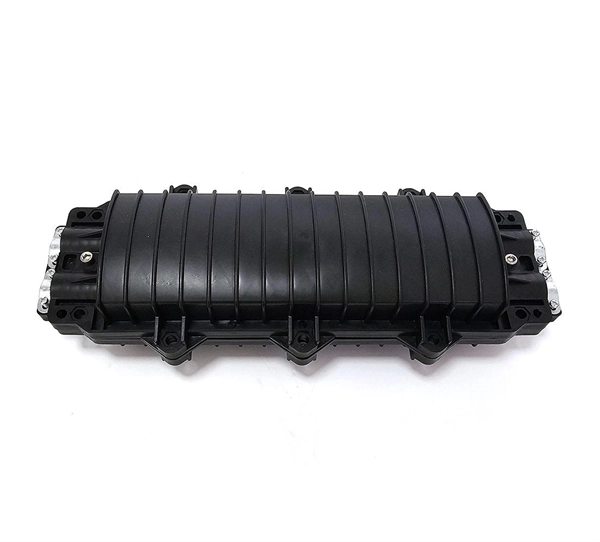

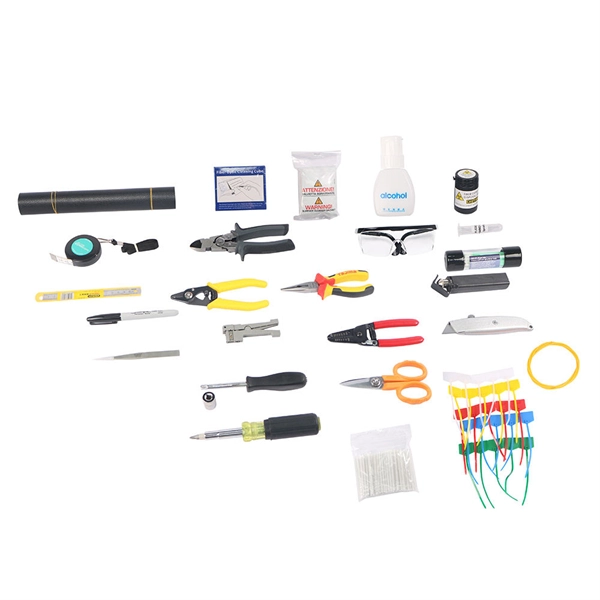

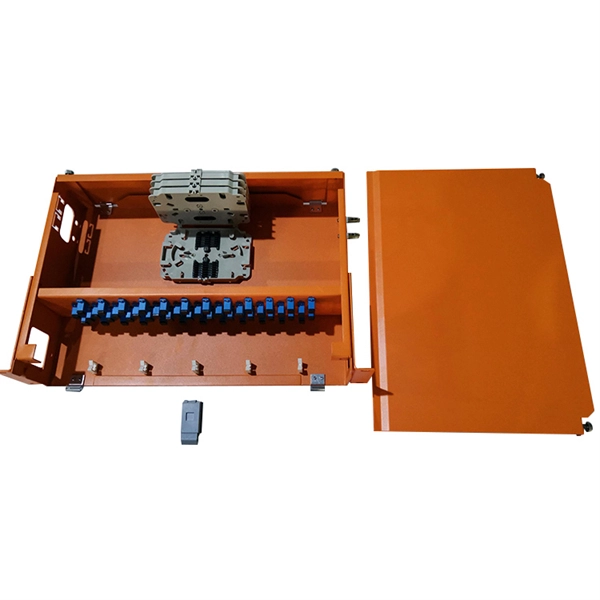

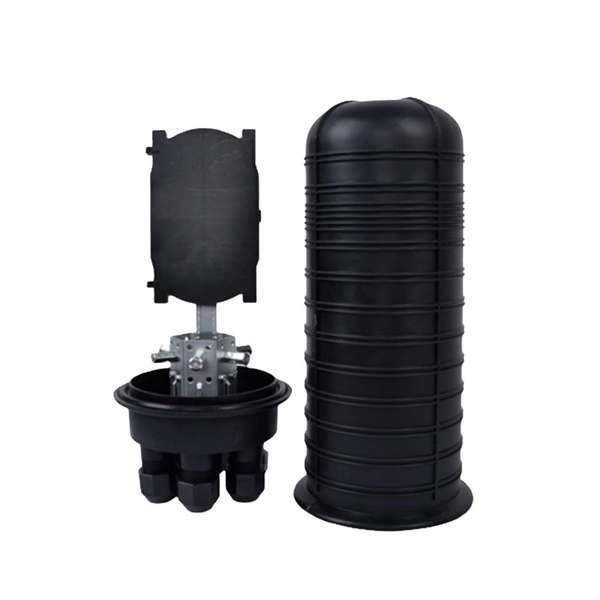

An OPGW splicing site is a carefully prepared location on a transmission tower or pole where optical fibers within the OPGW cable are safely accessed, spliced, and enclosed to maintain both communication and grounding functions.Site Preparation and SafetyBefore splicing, establish an equal potential zone to prevent electrical hazards. This involves installing temporary ground cables and using protective equipment such as removable hot-sticks, conductive mats, gloves, and face shields . The site should be stable, with sufficient space to straighten and secure the cable over at least 2–2.5 meters for preparation . Safety is critical because OPGW cables are installed on high-voltage transmission lines, often above live conductors .Cable PreparationMark and secure the cable: Wrap tape around the section to be stripped and mark the length (typically 2–2.5 meters).Remove armor and metal layers: Carefully cut and remove aluminum strands using a metal saw or mini grinder, exposing the inner tubes without damaging the fibers .Expose optical fibers: For central tube or stranded OPGW types, ensure the fibers are accessible and properly supported. If fibers are in metal loose tubes, inner strands should extend slightly beyond the outer strands .Splicing ProcedureFusion splicing: Use a fusion splicer to join the optical fibers, ensuring minimal loss and high reliability .Protection: Seal the splice with a heat-shrink sleeve or other protective enclosure to prevent environmental damage .Splice trays and closures: Arrange fibers in splice trays and install them in an optical closure designed for OPGW, which can accommodate multiple splices and provide mechanical anchoring . Closures are typically mounted on the tower using galvanized steel clamps and sealed with pre-molded gaskets .Testing and VerificationAfter splicing, perform OTDR (Optical Time-Domain Reflectometer) testing to verify splice quality and ensure minimal signal loss . Proper testing confirms both the optical performance and the integrity of the grounding function.Equipment and ClosuresSplice closures: Available in various capacities (e.g., 240–336 fiber splices) with anchoring points for strength members .Tools: Fusion splicer, heat-shrink sleeves, clamps, tape, metal saws, and protective gear .Cable types: Central tube, aluminum pipe, and stranded OPGW, each requiring slightly different preparation techniques .SummaryAn OPGW optical fiber splicing site combines rigorous safety measures, precise cable preparation, careful fusion splicing, and secure closure installation. Following these procedures ensures the cable maintains its dual role as a grounding conductor and high-capacity optical communication medium, while minimizing the risk of damage or service disruption .
