Electrical Cabinet and Distribution Box Design

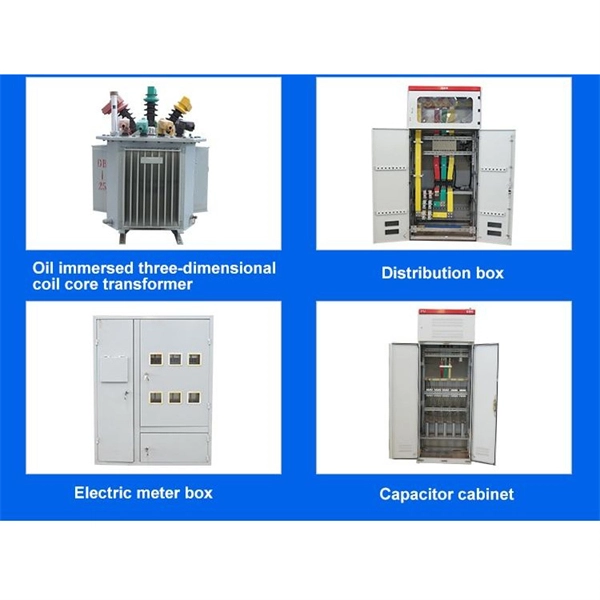

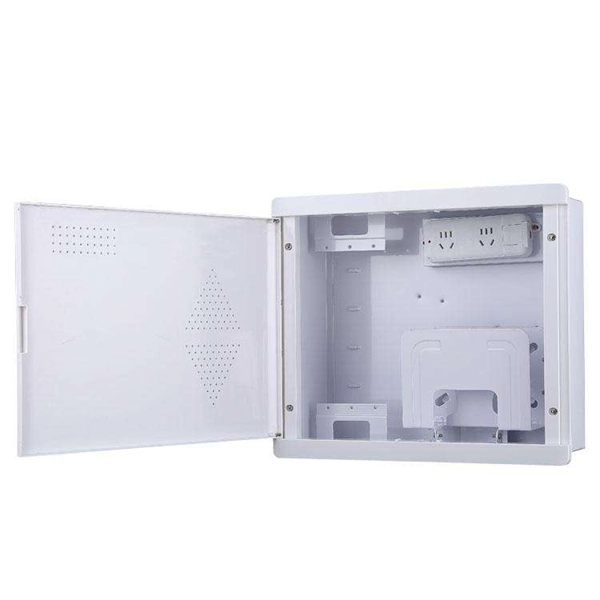

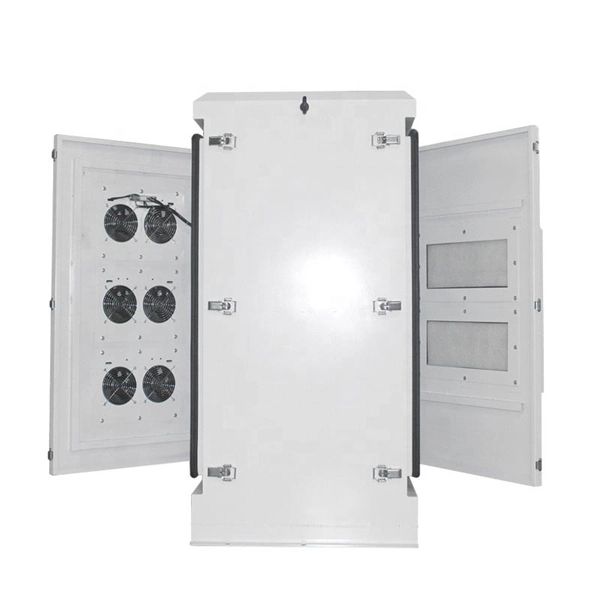

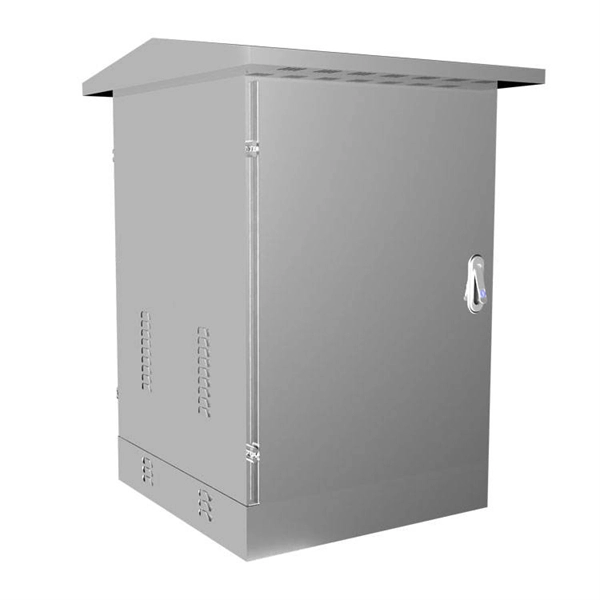

Electrical distribution boxes in cabinets are designed to safely house, organize, and protect electrical components while ensuring efficient power distribution and maintenance access.Core Design PrinciplesPurpose and Functionality: A distribution box serves as the central hub for electrical circuits, distributing power from a main source to multiple circuits while providing protection against overloads, short circuits, and faults. It typically houses circuit breakers, fuses, busbars, contactors, and protective relays and may include smart monitoring modules for energy management and automation integration . Structural Layout: Modern cabinets use compartmentalization to separate functional zones such as cable chambers, busbar chambers, and instrument compartments. This prevents fault propagation, improves safety, and facilitates maintenance. High-voltage cabinets often employ drawer-type or withdrawable designs for key components, allowing maintenance under de-energized conditions . Low-voltage cabinets may use modular drawer units to improve accessibility and reliability of connections . Material Selection: Cabinets are typically made from cold-rolled steel, epoxy-coated or powder-coated stainless steel, or high-durability thermoplastics like polycarbonate or ASA. These materials provide mechanical strength, electrical insulation, and environmental protection, with IP ratings ranging from IP44 to IP67 depending on installation requirements .Design ConsiderationsThermal Management: Proper ventilation, heat dissipation, and temperature control devices are essential to prevent overheating of components. Designers must account for component heat generation, airflow, and ambient conditions . Electrical Safety and Standards: Compliance with electrical safety standards and regulatory requirements is critical. This includes ensuring adequate clearances, insulation, grounding, and protection against electrical faults . Customization and Scalability: Distribution boxes can be tailored to specific project needs, including component layout, mounting logic, access requirements, and future expansion. Custom designs improve installation efficiency, reduce labor, and allow for integration of smart monitoring or automation systems . Human-Machine Interaction: Modern designs consider ease of operation, visibility of indicators, and accessibility for maintenance, ensuring that operators can safely and efficiently interact with the system .Optimization StrategiesFunctional Zoning: Separate compartments for cables, busbars, and control devices to enhance safety and maintenance efficiency .Modular Design: Use of withdrawable or plug-in units for easy replacement and upgrades .Vibration and Shock Protection: Insulating mats and robust mounting to prevent mechanical stress on components .Smart Integration: Incorporation of energy monitoring, communication modules, and remote control for advanced power management .ConclusionA well-designed electrical distribution box in a cabinet is more than a protective enclosure; it is a systematic solution that balances safety, reliability, accessibility, and scalability. By carefully considering component layout, material selection, thermal management, and compliance with standards, designers can create cabinets that are efficient, safe, and adaptable to future power distribution needs .
